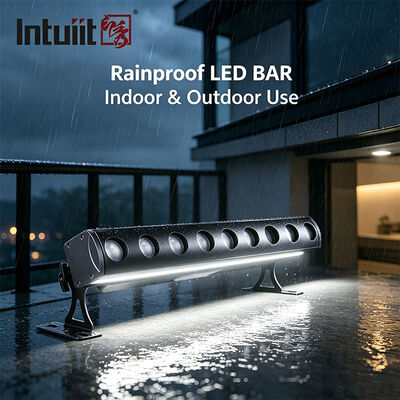

RGBW 4in1 LED Wall Washer 100W IP65 Waterproof Aluminum Linear Light 0.5M Outdoor Bar
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Intuiit |
| Certificazione: | CE&RoHS |
| Numero di modello: | CT-001P-0.5M |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | MOQ 50PCS |
|---|---|
| Imballaggi particolari: | scatola interna + cartone principale |
| Tempi di consegna: | 25-35 giorni per ordine di massa |
| Termini di pagamento: | T/T in anticipo (deposito del 30%, pagamento del saldo del 70% prima della consegna) |
| Capacità di alimentazione: | 10000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Tipo: | Barra del lavaggio della parete del LED | Sorgente luminosa: | LED RGBW 4 in 1 |
|---|---|---|---|
| Massimo. Energia: | 100 W | Tensione in ingresso: | AC100-240V, 50-60Hz |
| Grado IP: | IP65 | Garanzia: | 1 anno |
Descrizione di prodotto

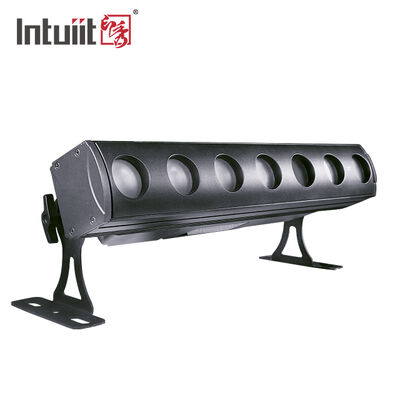

CT-001P-0.5M: Precision Stage LED Light Bar
7×15W RGBW | IP65 | DMX/RDM — Compact Power for Professional Productions
A high-output LED bar engineered for lighting designers who refuse to compromise between compact footprint and stage-grade performance. The CT-001P-0.5M packs seven 15W RGBW 4-in-1 LEDs into a rugged, weather-sealed chassis, delivering the color fidelity and beam precision demanded by concert tours, theatrical productions, and permanent installations alike.
Core Advantage: Rigorous Engineering in a Compact Form
At 0.5 meters, the CT-001P-0.5M defies the output-to-size ratio typical of linear fixtures. Die-cast magnesium combined with tensile aluminum yields a housing that is both lightweight for rigging and structurally resilient against the physical abuse of touring life. IP65 sealing ensures uninterrupted operation in outdoor festivals, wet stages, and dust-heavy environments — no compromises, no weather covers required.
Technical Specifications
Optical Performance
- Light Source: 7 × 15W RGBW 4-in-1 LEDs — full-spectrum color mixing with pure whites, zero color fringing at any saturation.
- Native Beam: 4.5° narrow aperture for long-throw accenting and tight aerial effects.
- Beam Shaping: Field-swappable lens filters — 20°, 40°, or 20°×40° asymmetric — adapt beam characteristics to venue geometry without swapping fixtures.
- 16-Bit Dimming: Cinema-grade smoothness across the full 0–100% range; no visible stepping, even in slow-fade sequences.
Build & Environmental Integrity
- Housing: Die-cast magnesium body + tensile aluminum end caps — optimized strength-to-weight ratio for touring and truss mounting.
- Ingress Protection: IP65-rated, fully sealed against water jets and particulate ingress.
- Thermal Management: Passive convection design — silent operation critical for theater and houses of worship.
Control & Connectivity
- Protocol: DMX512 / RDM bidirectional — remote addressing, status polling, and diagnostics reduce on-site maintenance cycles.
- Connectors: Seetronic 5-pin (3-pin compatible) DMX in/out + PowerCon in/out — industry-standard interconnects for rapid daisy-chaining.
- On-Fixture Interface: OLED display with 4-button tactile panel for standalone configuration and diagnostics.
Application Spectrum
Concert Tours & Festivals；Theater & Opera；Houses of Worship；Corporate Events & Broadcast；Permanent Installations
Technical Data
| Item No. | CT-001P-0.5M |
| Light Source | 7Pcs*15W RGBW 4-in-1 LED |
| Max. Power | 100W |
| Work Voltage | AC100-240V, 50-60Hz |
| Beam angle | 4.5Degree,8Degree (20D,40D, 20*40D by diffusion filer) |
| Luminous flux | 1265lm |
| Control Protocol | DMX512,RDM |
| DMX Channels | 4,6,8,38CH |
| IP Grade | IP65 |
| Product's dimension | 511*150*237mm |
| Net weight | 6.2KG |
Lighting Distribution Data
Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
