14x10W Outdoor IP65 RGBW LED Pixel Bar Light Stage Lighting
Dettagli:
| Luogo di origine: | Cina |
| Marca: | Intuiit |
| Certificazione: | CE&RoHS |
| Numero di modello: | CT-002P |
Termini di pagamento e spedizione:
| Quantità di ordine minimo: | Negoziabile |
|---|---|
| Imballaggi particolari: | Scatola interna+ maestro cartone |
| Tempi di consegna: | 25-35 giorni per ordine di massa |
| Termini di pagamento: | T/T in anticipo (deposito del 30%, pagamento del saldo del 70% prima della consegna) |
| Capacità di alimentazione: | 10000 pezzi/mese |
|
Informazioni dettagliate |
|||
| Nome del prodotto: | Controllo dei pixel della lavastoviglie esterna | Colore alloggiamento: | Nero |
|---|---|---|---|
| Energia: | 140 W | Tensione in ingresso: | AC100-240V, 60Hz/50Hz |
| Grado IP: | IP65 | Garanzia: | 1 anno |
| Cct: | 3000k | Angolo del fascio: | 20°, 20*40° |
| Canale: | 4/6/8/56CH | Colore chiaro: | RGBW |
| Materiale: | Lega di alluminio | Misurare: | 978*141*179mm |
| Voltaggio: | AC110-240V | Peso: | 6.2Kg |
| Evidenziare: | 14x10W outdoor LED pixel bar,IP65 RGBW stage lighting,waterproof LED bar light |
||
Descrizione di prodotto

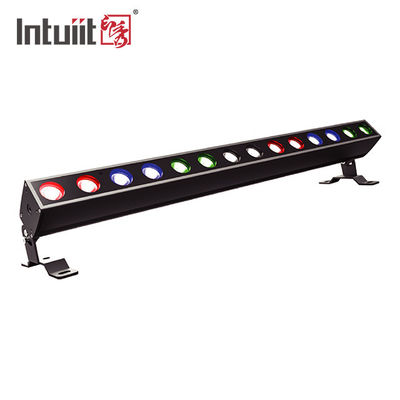

CT-002P IP65 Stage LED Light Bar — Engineered for Outdoor Performance
Designed to excel in outdoor environments, the CT-002P is an IP65-rated stage LED light bar that combines robust construction with refined aesthetics. Its housing is precision-crafted from die-cast aluminum, offering durability and a sleek, modern profile ideal for stage, event, and architectural lighting applications.
Featuring 14 high-output 10W RGBW 4-in-1 LEDs, the CT-002P delivers rich, vivid colors and superior color blending for dynamic and immersive lighting effects. With selectable beam angles of 20° and 40°, it provides versatile coverage to adapt to diverse setup requirements.
A standout capability of the CT-002P is its advanced pixel control, allowing individual LED addressing for intricate patterns and detailed visual displays. This enables unparalleled creative freedom in designing custom lighting sequences.

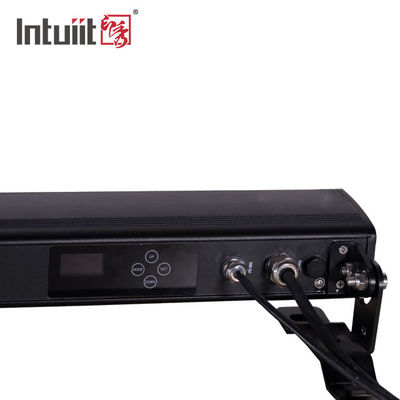

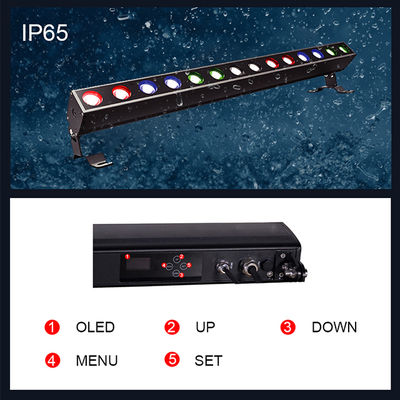

User operation is streamlined through an integrated OLED display and a four-button touch control panel, enabling intuitive adjustment of settings, modes, and parameters directly on the fixture.
With 16-bit dimming, the light bar ensures smooth, flicker-free intensity transitions and precise brightness control for professional-grade lighting refinement.
Built to endure harsh outdoor conditions, the IP65 protection guarantees reliable performance in rain, dust, and variable temperatures, making it suited for stages, festivals, outdoor installations, and architectural projects.
In summary, the CT-002P Stage LED Light Bar is a versatile, high-performance lighting solution that blends exceptional color performance, precise control, and rugged reliability—perfect for demanding outdoor and professional applications.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |
Appearance
Light Distribution Data

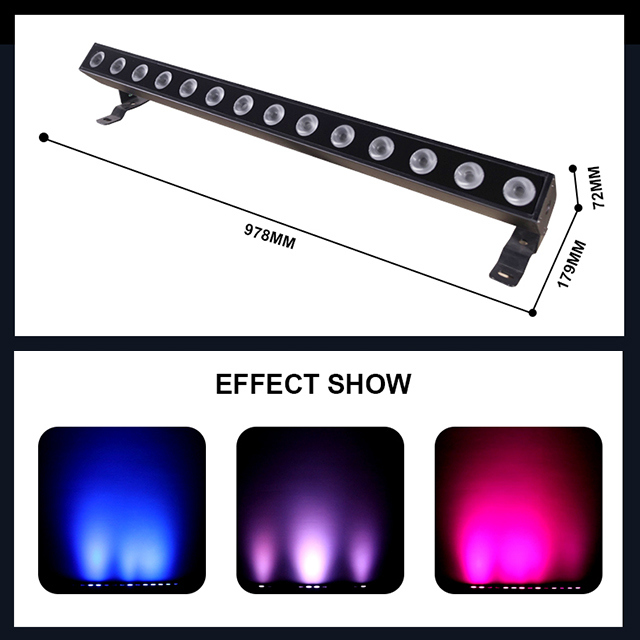

Product's Dimension
Installation Diagram
